扭力傳感器

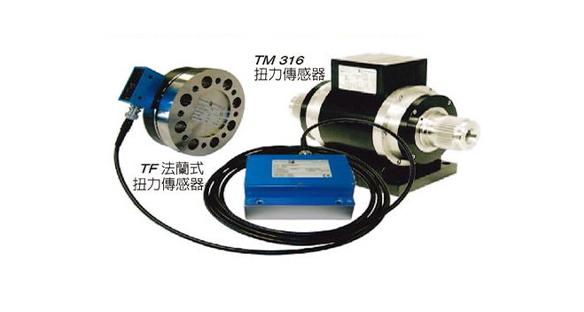

Magtrol 扭力傳感器
瑞士製造的 Magtrol 扭力傳感器，可在廣泛量程範圍內進行高精度的扭矩與轉速量測。所有型號皆提供轉速與扭矩訊號的類比輸出。
TM 系列採用獨特的非接觸式差動變壓（Differential Transformer）扭矩感測技術，具備高可靠性與優異的過載保護能力，同時提供卓越的長期穩定性與良好的抗干擾性能，特別適用於高精度與長時間運行的測試應用。
Kistler 扭力傳感器
瑞士製造的 Kistler 扭力傳感器，採用高精度應變片量測技術，並透過非接觸方式進行訊號傳輸。轉速與扭矩訊號可支援類比或數位輸出，量測精度最高可達 ±0.05%。
此外，產品具備雙量程（Dual Range）功能選項，可在不同測試條件下靈活切換，兼顧高解析度與量測範圍，滿足多元測試需求。
產品說明
Magtrol Brand
| 型號 | 額定扭力 | TMB 系列基本精度 | TM系列高精度 | TMHS系列高轉速&高精度 | TF 系列法蘭式扭力傳感器 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| TM | TF | N · m | 精度 | 最高轉速 (rpm) | 精度 | 最高轉速 (rpm) | 精度 | 最高轉速 (rpm) | 精度 | 最高轉速 (rpm) |
| 301 | … | 0.1 | N/A | 0.2% | 20,000 | N/A | N/A | |||
| 302 | … | 0.2 | N/A | ＜0.1% | 20,000 | N/A | N/A | |||
| 303 | … | 0.5 | ＜0.1% | 6,000 | ＜0.1% | 20,000 | ＜0.1% | 40,000 | N/A | |
| 304 | … | 1 | ＜0.1% | 6,000 | ＜0.1% | 20,000 | ＜0.1% | 50,000 | N/A | |
| 305 | … | 2 | ＜0.1% | 6,000 | ＜0.1% | 20,000 | ＜0.1% | 50,000 | N/A | |
| 306 | … | 5 | ＜0.1% | 6,000 | ＜0.1% | 20,000 | ＜0.1% | 50,000 | N/A | |
| 307 | … | 10 | ＜0.1% | 6,000 | ＜0.1% | 20,000 | ＜0.1% | 50,000 | N/A | |
| 308 | … | 20 | ＜0.1% | 6,000 | ＜0.1% | 20,000 | ＜0.1% | 50,000 | N/A | |
| 309 | 209 | 20 | ＜0.1% | 4,000 | ＜0.1% | 10,000 | ＜0.1% | 32,000 | ＜0.1% | 17,000 |
| 310 | 210 | 50 | ＜0.1% | 4,000 | ＜0.1% | 10,000 | ＜0.1% | 32,000 | ＜0.1% | 17,000 |
| 311 | 211 | 100 | ＜0.1% | 4,000 | ＜0.1% | 10,000 | ＜0.1% | 32,000 | ＜0.1% | 17,000 |
| 312 | 212 | 200 | ＜0.1% | 4,000 | ＜0.1% | 10,000 | ＜0.1% | 24,000 | ＜0.1% | 17,000 |
| 313 | 213 | 500 | ＜0.1% | 4,000 | ＜0.1% | 10,000 | ＜0.1% | 24,000 | ＜0.1% | 13,000 |
| 314 | 214 | 1,000 | N/A | ＜0.1% | 7,000 | ＜0.1% | 16,000 | ＜0.1% | 13,000 | |
| 315 | 215 | 2,000 | N/A | ＜0.1% | 7,000 | ＜0.1% | 16,000 | ＜0.1% | 10,000 | |
| 316 | 216 | 5,000 | N/A | ＜0.1% | 5,000 | ＜0.1% | 12,000 | ＜0.1% | 8,000 | |
| 317 | 217 | 10,000 | N/A | ＜0.15% | 5,000 | ＜0.15% | 12,000 | ＜0.1% | 8,000 | |
| … | 218 | 20,000 | N/A | N/A | N/A | ＜0.25% | 3,000 | |||
| … | 219 | 50,000 | N/A | N/A | N/A | ＜0.25% | 3,000 | |||
| … | 220 | 100,000 | N/A | N/A | N/A | ＜0.30% | 3,000 | |||
Kistler Brand
4520A 系列 (精度: 0.5%)
| 額定扭力 | 最高轉速 (Max) |
|---|---|
| N · m | rpm |
| 1 | 10,000 |
| 2 | 10,000 |
| 5 | 10,000 |
| 10 | 10,000 |
| 20 | 8,000 |
| 50 | 8,000 |
| 100 | 8,000 |
| 200 | 8,000 |
| 500 | 7,000 |
| 1000 | 7,000 |
Kistler Brand
4503A 系列 (精度: 0.1%)
| 額定扭力 | 最低轉速 | 最高轉速 |
|---|---|---|
| N · m | rpm | rpm |
| 0.2 | 20,000 | 50,000 |
| 0.5 | 20,000 | 50,000 |
| 1 | 20,000 | 50,000 |
| 2 | 20,000 | 50,000 |
| 5 | 20,000 | 50,000 |
| 10 | 20,000 | 50,000 |
| 20 | 20,000 | 50,000 |
| 50 | 12,000 | 30,000 |
| 100 | 12,000 | 30,000 |
| 200 | 8,000 | 20,000 |
| 500 | 8,000 | 20,000 |
| 1000 | 8,000 | 20,000 |
| 2000 | 5,000 | 10,000 |
| 5000 | 5,000 | 10,000 |
Kistler Brand
4503B 系列 (精度: 0.05%) 具備”雙檔位”的功能選項
| 額定扭力 | 最低轉速 | 最高轉速 |
|---|---|---|
| N · m | rpm | rpm |
| 0.2 | 20,000 | 50,000 |
| 0.5 | 20,000 | 50,000 |
| 1 | 20,000 | 50,000 |
| 2 | 20,000 | 50,000 |
| 5 | 20,000 | 50,000 |
| 10 | 20,000 | 50,000 |
| 20 | 20,000 | 50,000 |
| 50 | 12,000 | 30,000 |
| 100 | 12,000 | 30,000 |
| 200 | 8,000 | 20,000 |
| 500 | 8,000 | 20,000 |
| 1000 | 8,000 | 20,000 |
| 2000 | 5,000 | 10,000 |
| 5000 | 5,000 | 10,000 |
