Magnetic Mapping Distribution of Permanent Magnets
Precise 3D magnetic field analysis for optimal magnet performance and quality inspection.

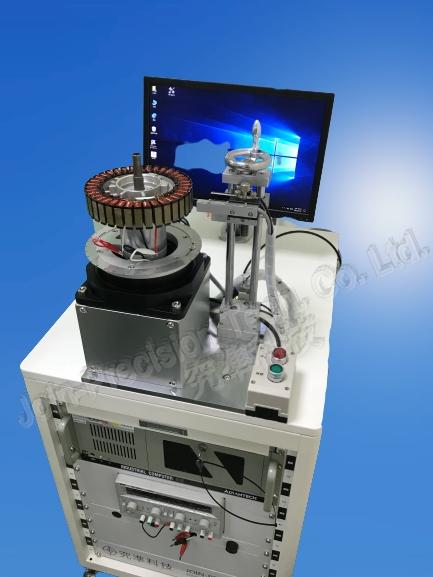

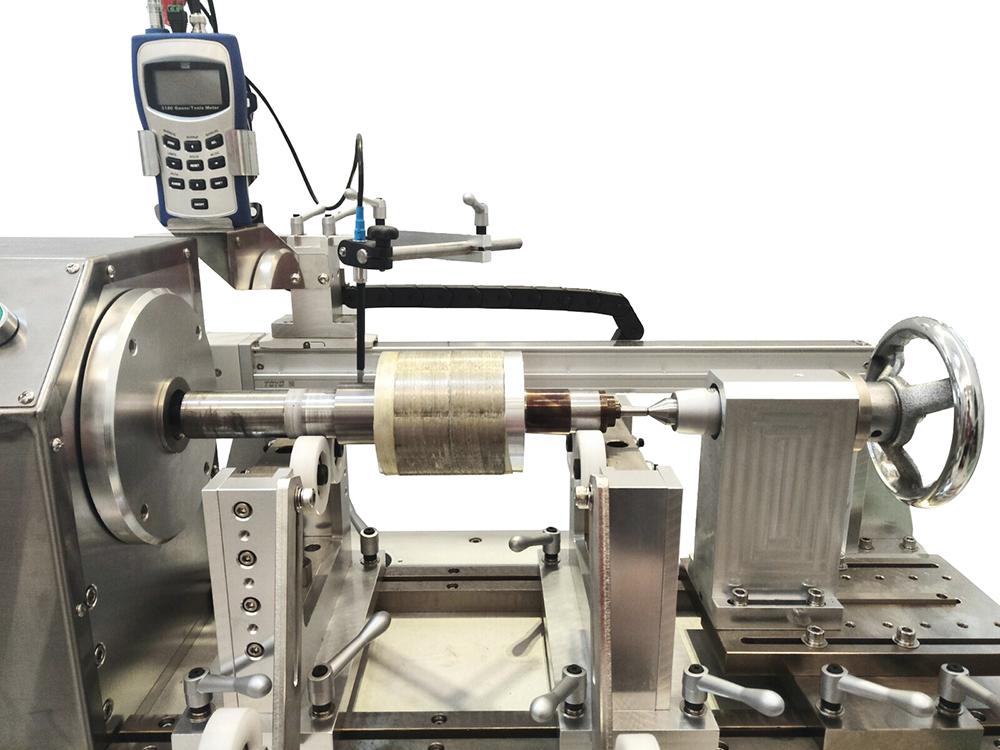

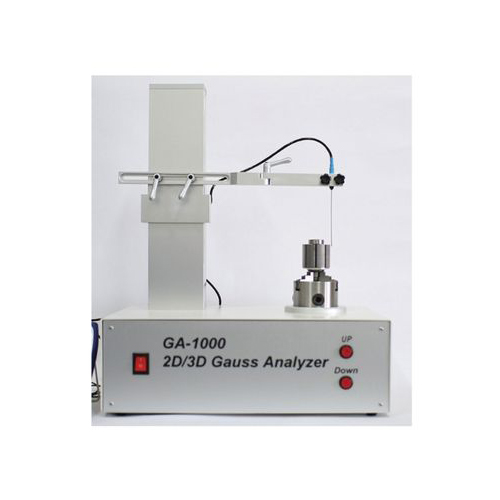

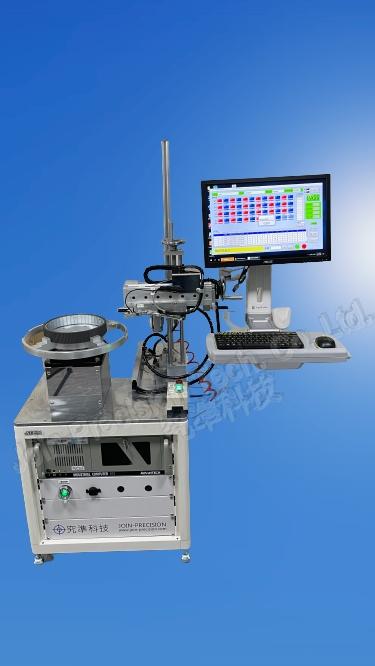

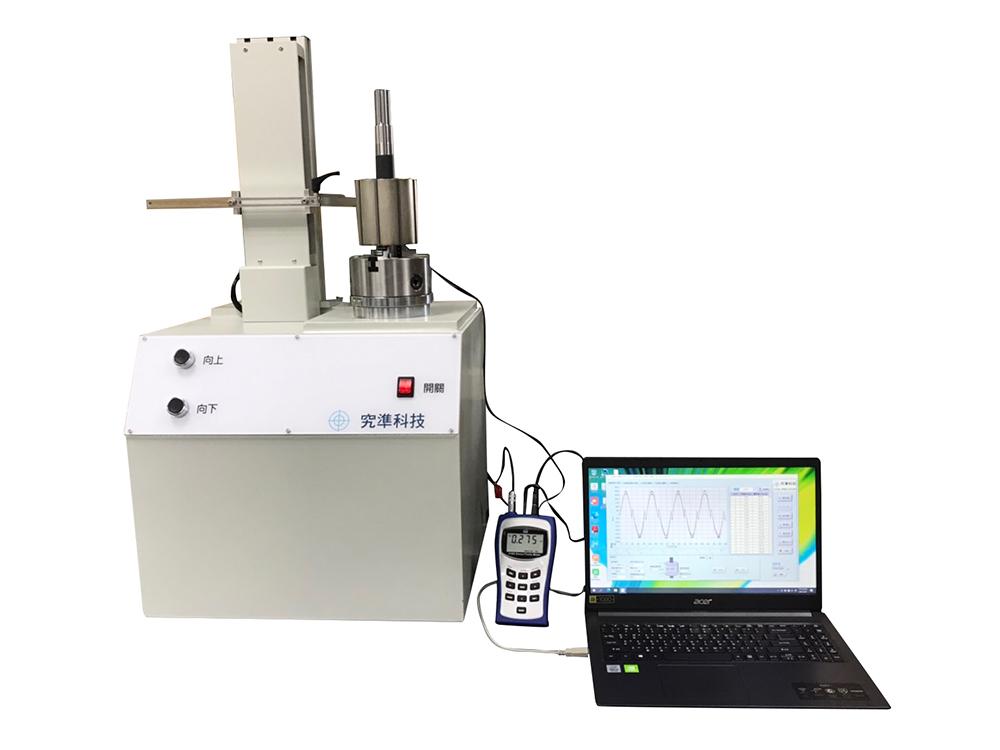

3D Magnetic Mapping Distribution Test System
Specifications & Features
- Test Items： Slope Angle, Strength, Magnetic Energy Product, Magnetic Half Height Area
- Use a set of F.W. Bell Gaussmeters
- Measuring Range：0-30KG ( According to the probe's spec. )
- 3-Jaw Fixture： Applicable diameter range： 2mm-70mm ( Customized Available )
- Z-axis moving distance & resolution：200mm/0.1mm (Customized Available)
- Data Capture Volume：40,000 per lap

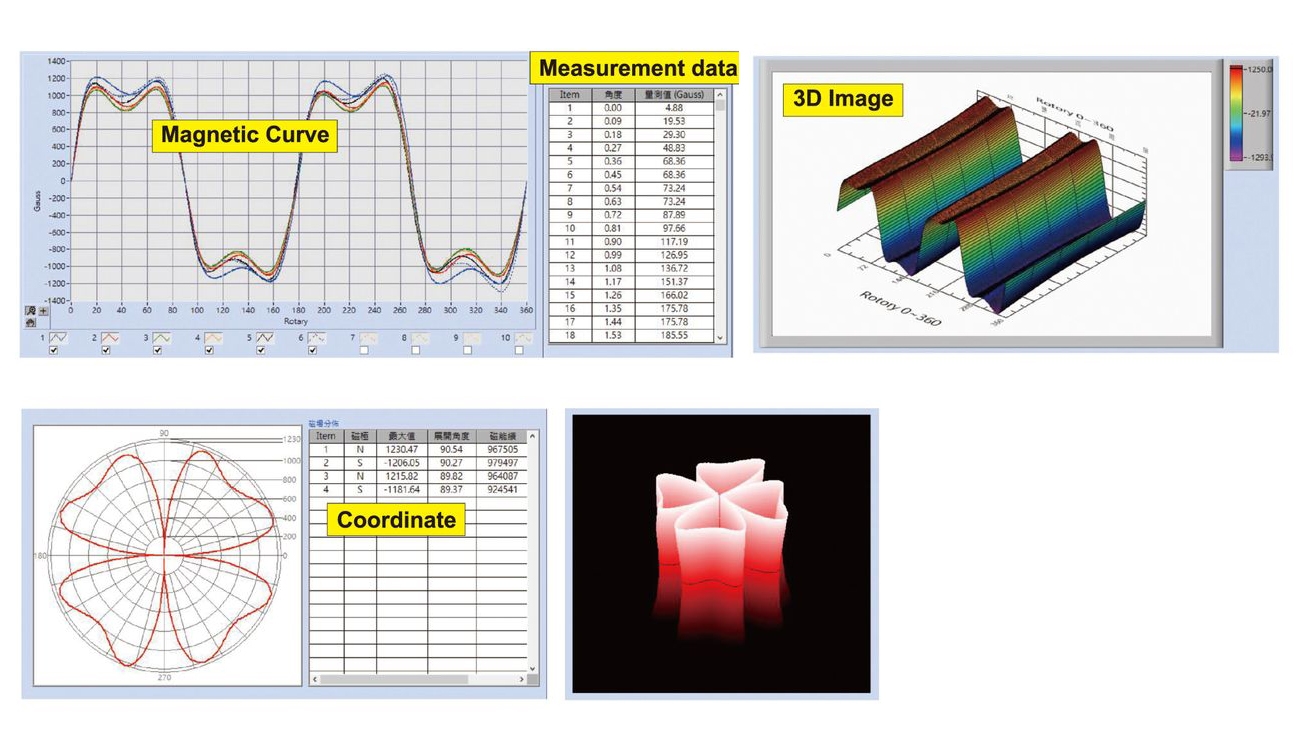

- Display Mode: Curve, Distribution, Polar coordinates, 3D distribution
- Adopts cylindrical stereoscopic graphics to display the magnetic pole distribution, which makes it easier to analyze the magnetic pole characteristics
- Operating System： Microsoft Windows
