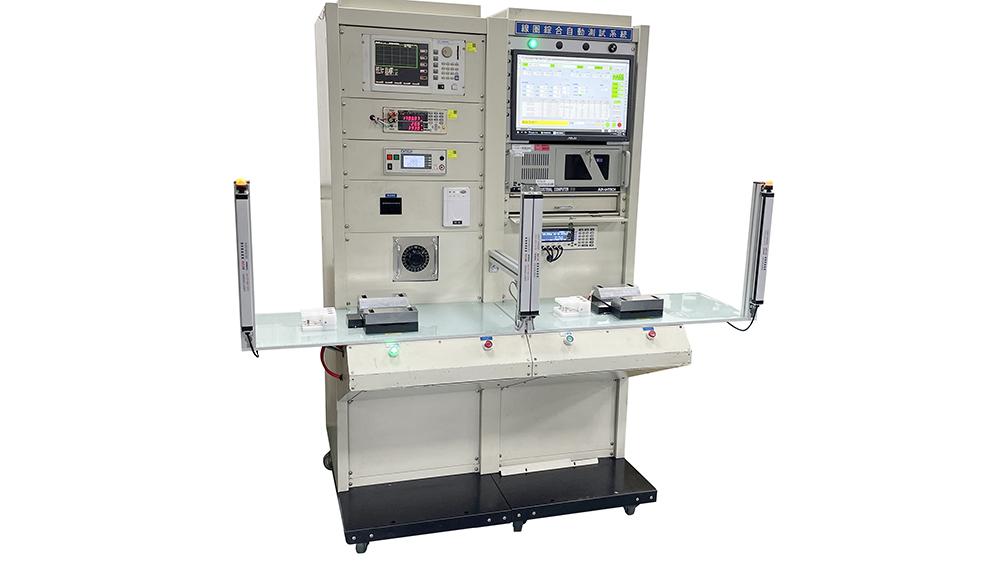

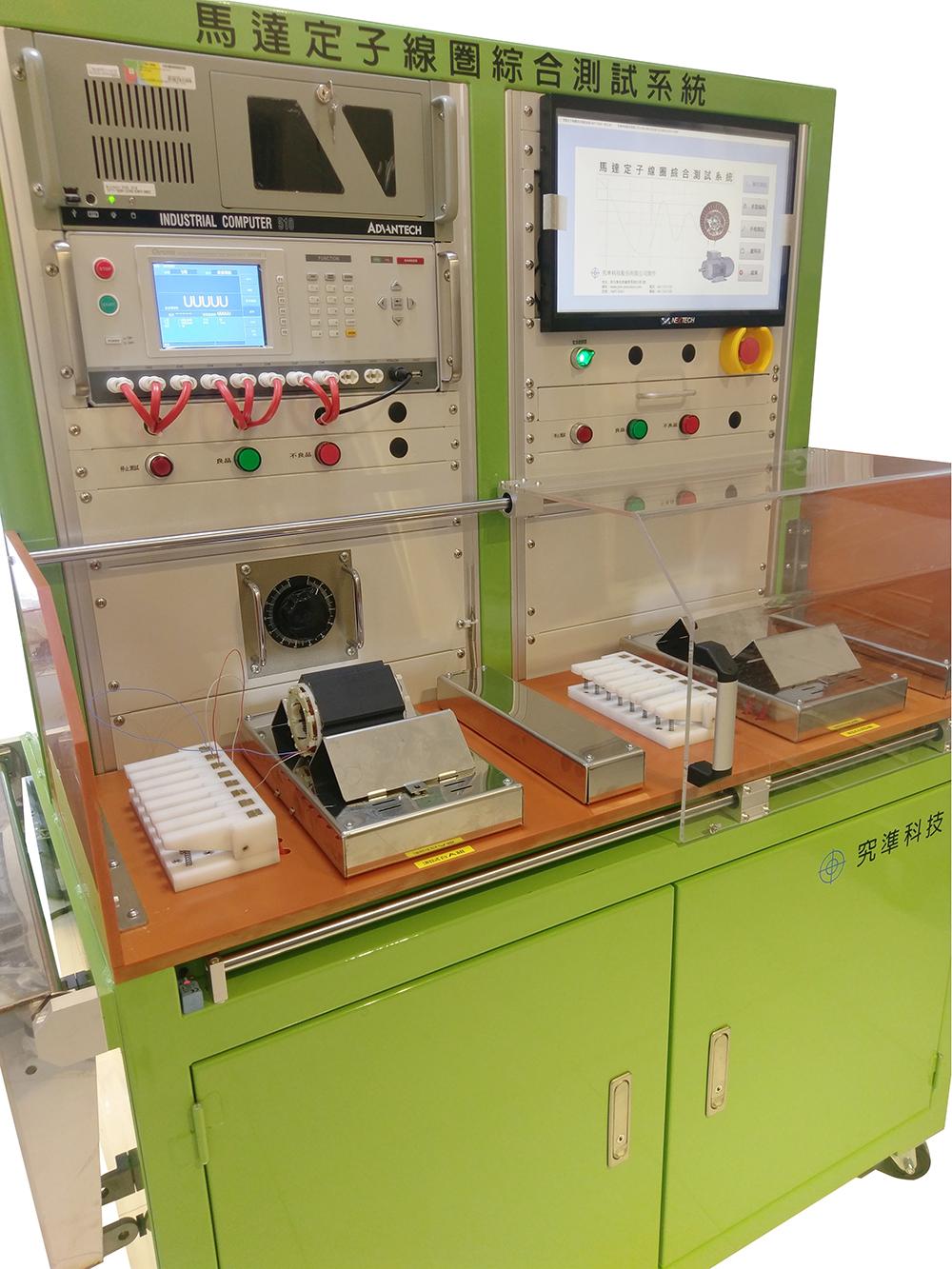

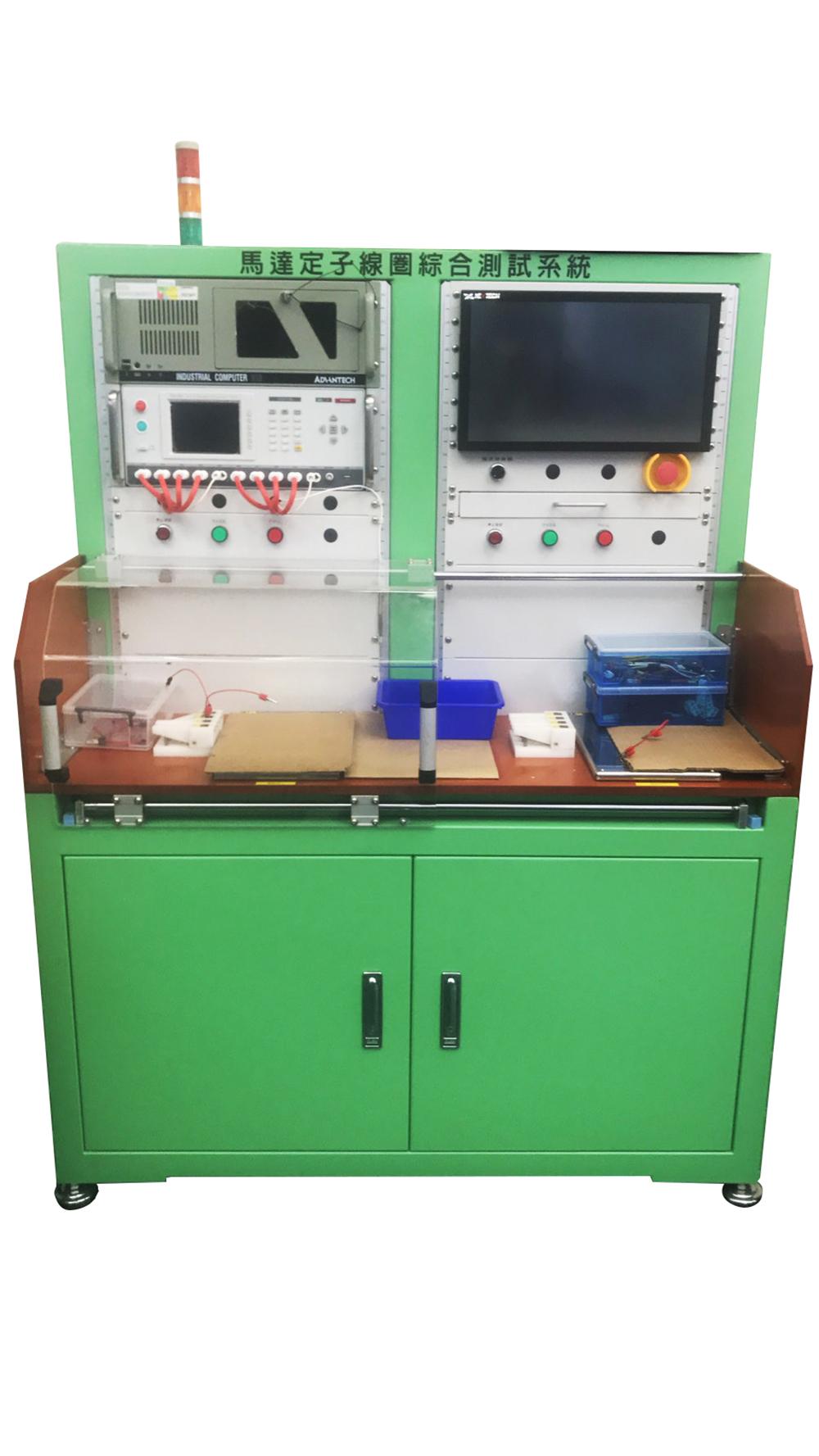

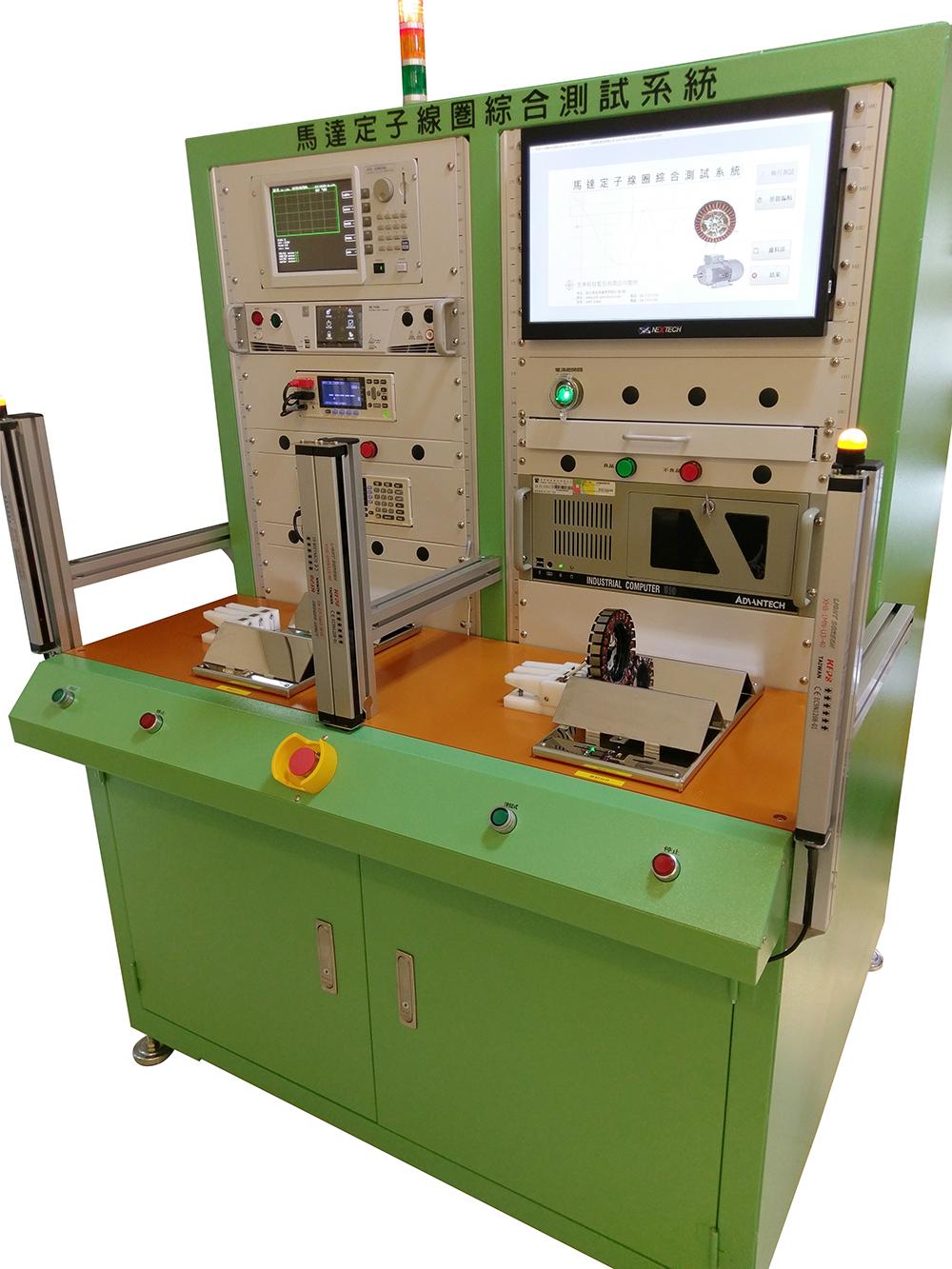

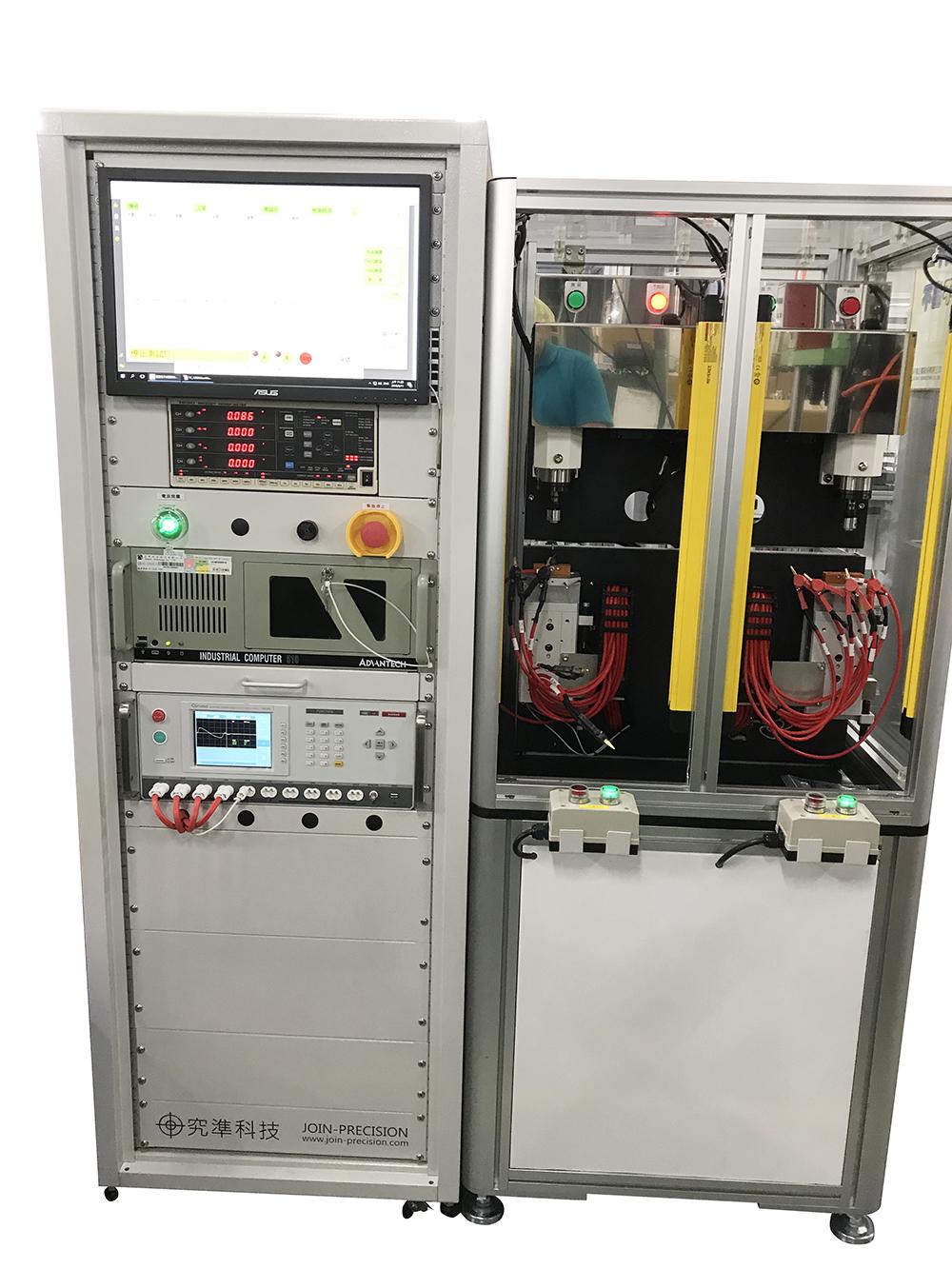

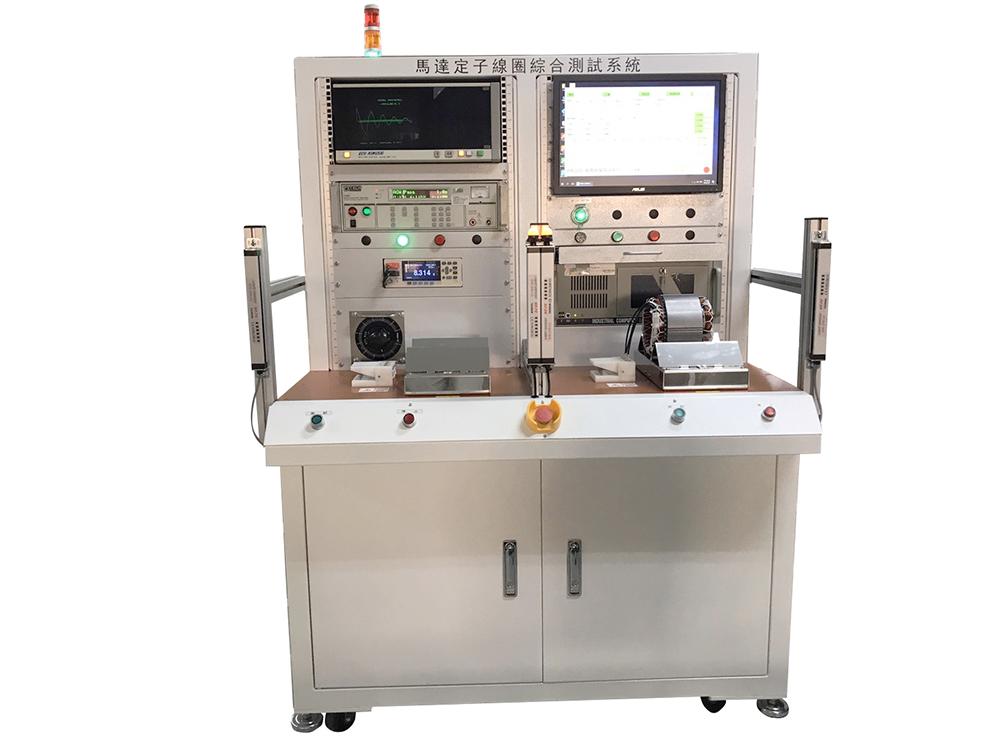

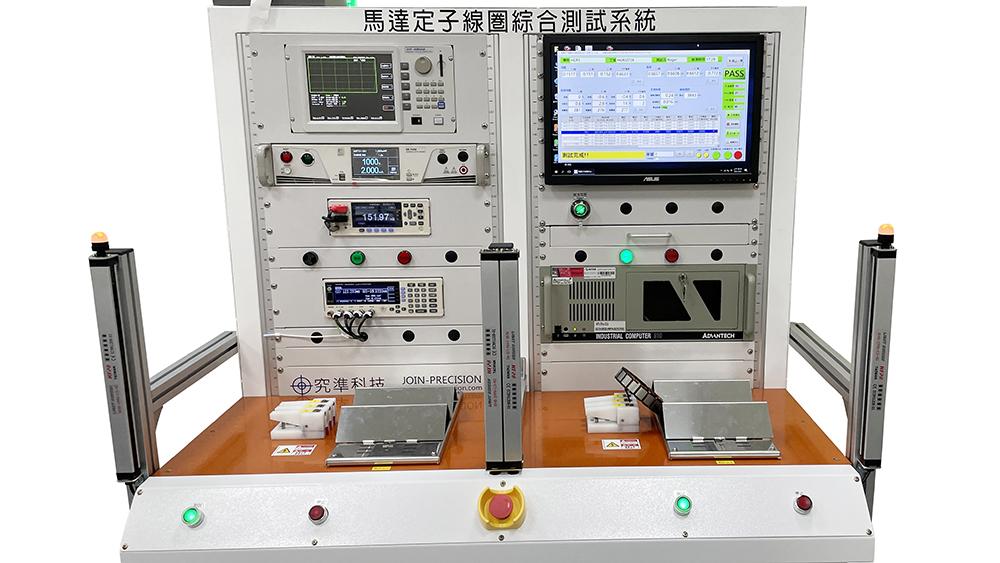

Stator Winding Tester

Stator Winding Tester

Hardwares:

• Impulse Winding Tester:
  Chroma Brand “5 in 1 Function” Model: 19036
• Computer:
  Advantech Industrial Computer

Test items:

• Layer short, Coil resistance, Insulation, Withstand voltage, Direction determination...etc.

Function Description：

• It can be customized for testing multiple sets of coils and various wiring methods.
• The upper and lower limit parameters and automatic alarm functions can be set.
• Database： Search by serial number, model, date, etc., for easy access to test data.
• Modular design, easy replacement, and maintenance.
• Automatic and manual dual operation modes.
• There is a network connection function. Test results can be transferred to a cloud database.
• Temperature compensation function： avoid the influence of ambient temperature on the coil resistance test.
• High-voltage relays are used as high-voltage isolation switches to improve equipment life.

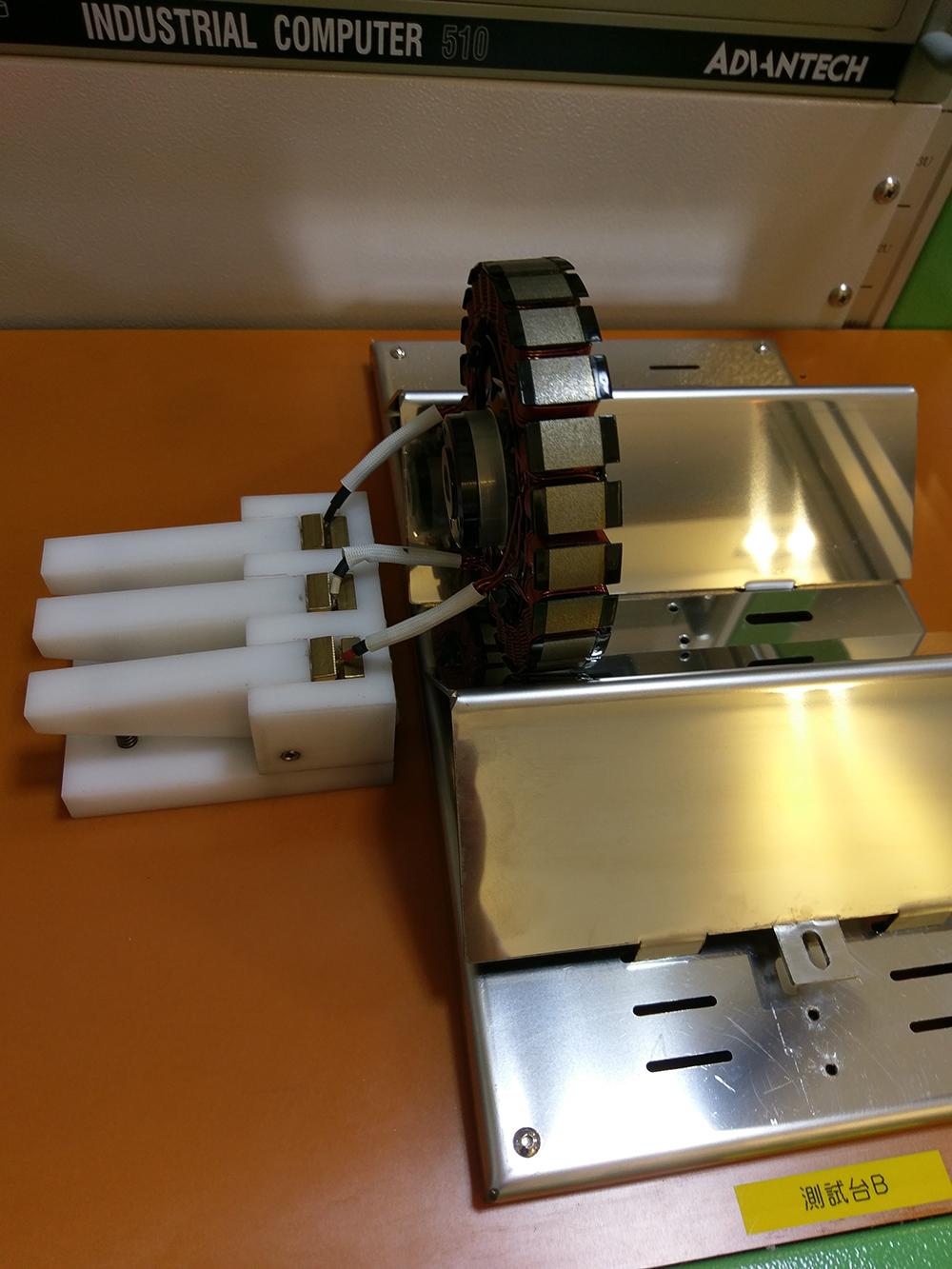

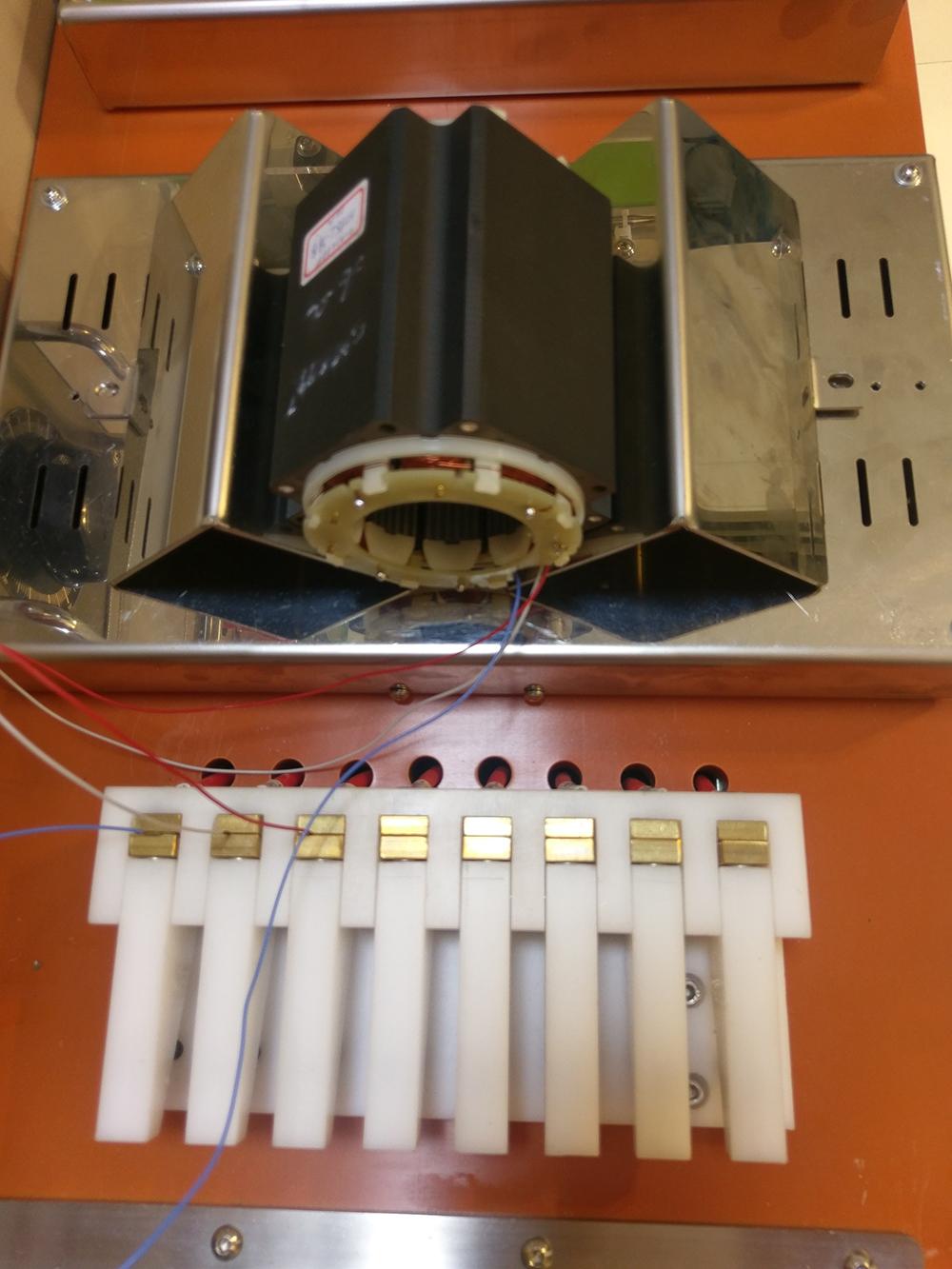

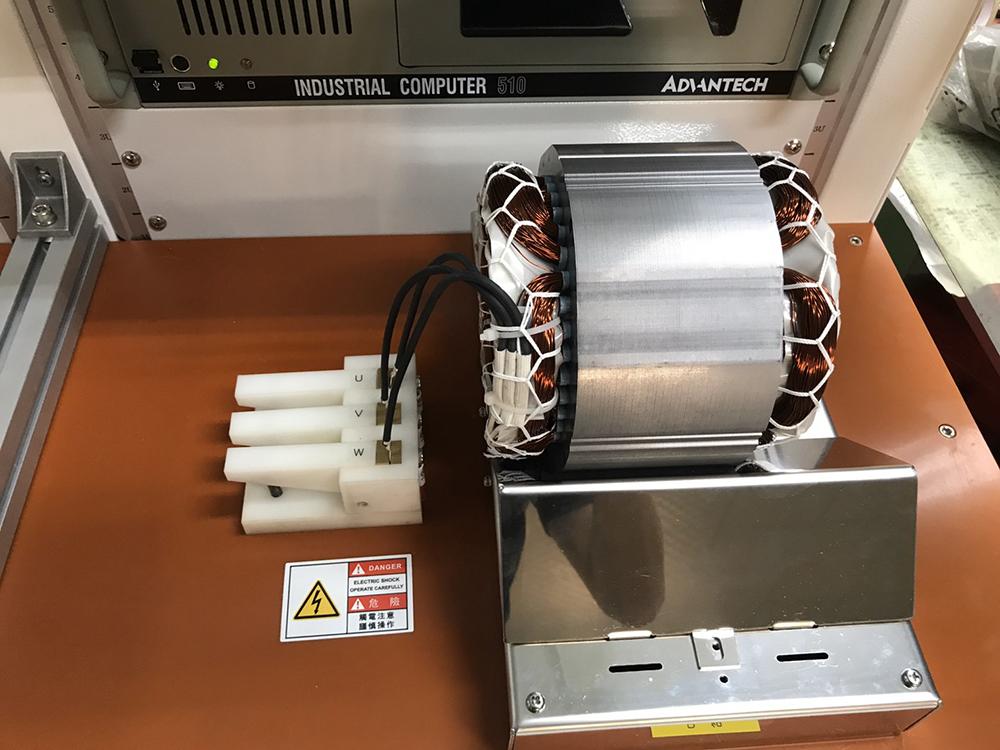

• The test bench is equipped with a protection switch or infrared gates to protect the operator from high voltage.
