Dynamometer Test System & Cogging Test

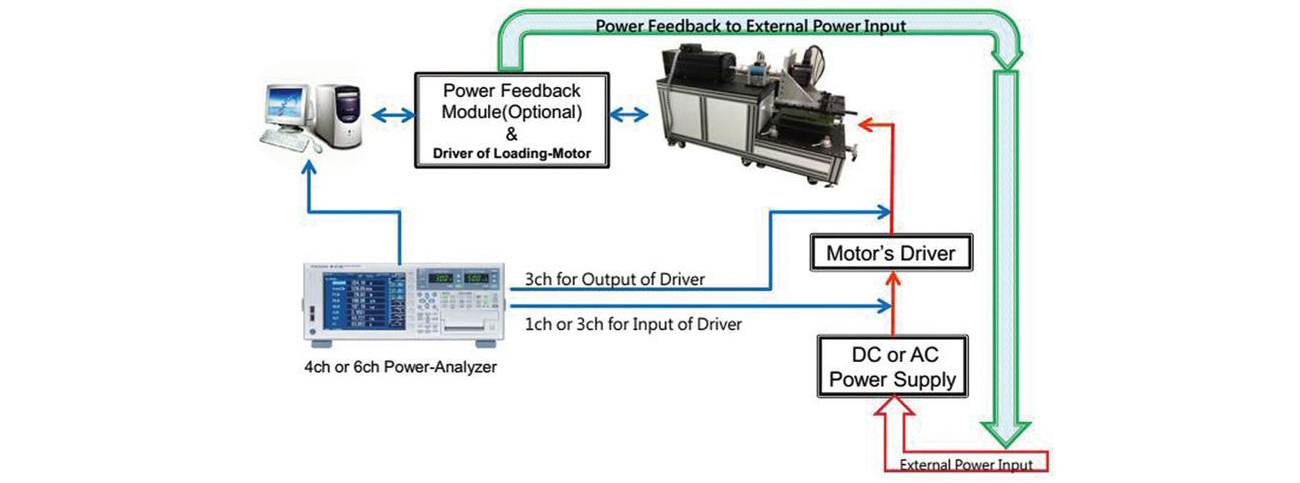

Dynamometer Test System (With Servomotor as a load)

Applicable Motor Type:

• BLDC motor
• AC/ DC servo motor
• Single/ Three-phase induction motor
• Single/ Three-phase induction compressor motor
• DC Brushless compressor motor

Hardwares:

• Load Part:
  • Servomotor
  • Power Feedback module (optional)
• Measurement Part:
  • Torque Meter:
    Kistler brand or Magtrol brand
  • Power Analyzer:
    Yokogawa brand WT series
    Hioki brand WP series
  • Low-Resistance meter: Hioki brand RM3544-01
  • Computer: Advantech Industrial Computer

Test items:

• 1 ψ Induction motor ==» V, A of the Main-Line, Vice-Line and Capacitor, and ∑ W
• 3 ψ Induction motor ==» Each phase V, A, and ∑ W
• Simultaneously measuring each phase V, A, and ∑ W of input and output of the driver.
• Torque, Speed, Motor- Efficiency, Drive-Efficiency, Total-Efficiency, Motor-housing Temperature (Optional), Motor-coil Temperature (Optional), Ld & Lq (Optional), Back EMF (Optional), and so on.

Software functions:

• With the inertia compensation function
• Motor-File management: Add, Edit, Delete, Quick Search, Copy, and other functions
• Data-File management: Add, Edit, Delete, Quick Search, Copy, Print, and other functions
• T-N Characteristic-Curve test & Fixed-Point test & Manual test
• Data-File can be exported to Excel format
• Test data can be displayed in 6 independent curves
• Characteristic-Curve can be used for comparison
  (5 curves of characteristics can be drawn on the same screen)

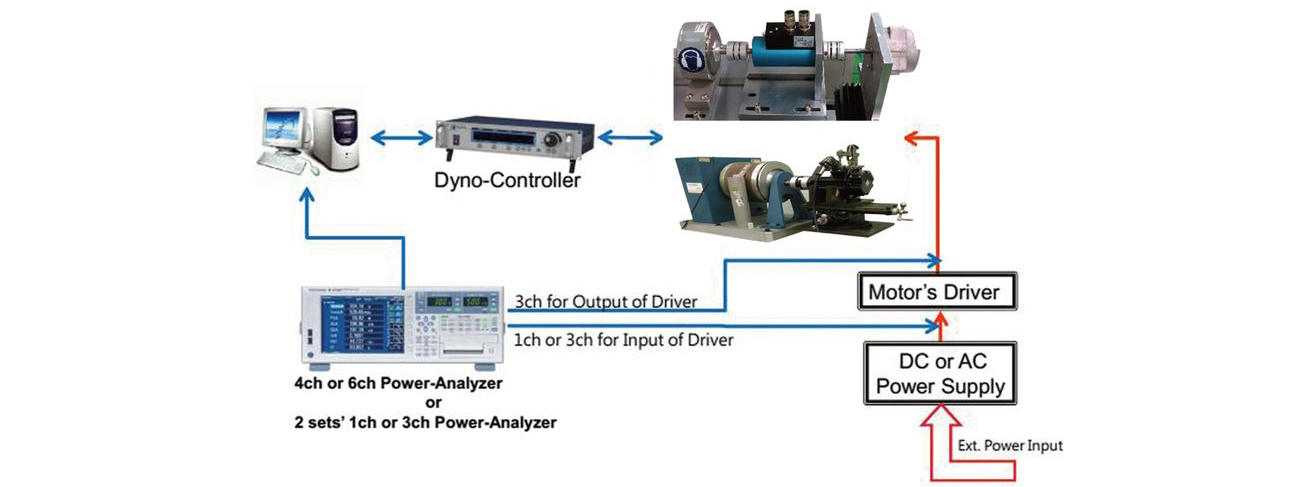

Dynamometer System (With hysteresis or eddy-current or powder as a load)

Applicable Motor Type:

• BLDC motor
• AC/ DC servo motor
• Single/ Three-phase induction motor
• High-Speed and High-Power motor (With Eddy-Current Loading)
• Low-Speed and High-Power motor (With Powder Loading)

Hardware:

• Load Part:
  Using Hysteresis or Eddy-Current or Powder
• Measurement Part:
  • Torque Meter:
    Kistler brand or Magtrol brand
  • Power Analyzer:
    Yokogawa brand WT series
    Hioki brand PW series
    Magtrol brand
  • Low-Resistance meter: Hioki brand RM3544-01
  • Dyno-Controller:
    Join-Precision brand DC-1000 or DC-2000
    Magtrol brand DSP series
  • Computer: Advantech Industrial Computer

Test items:

• 1 ψ Induction motor ==» V, A of the Main-Line, Vice-Line and Capacitor, and ∑ W
• 3 ψ Induction motor ==» Each phase V, A, and ∑ W
• Simultaneously measuring each phase V, A, and ∑ W of input and output of the driver.
• Torque, Speed, Motor- Efficiency, Drive-Efficiency, Total-Efficiency, Motor-housing Temperature (Optional), Motor-coil Temperature (Optional), and so on.

Software functions:

• With the inertia compensation function
• Motor-File management: Add, Edit, Delete, Quick Search, Copy, and other functions
• Data-File management: Add, Edit, Delete, Quick Search, Copy, Print, and Feature Chart Printing and other functions
• T-N Characteristic-Curve test & Fixed-Point test & Manual test
• Data-File can be exported to Excel format
• Test data can be displayed in 6 independent curves
• Characteristic-Curve can be used for comparison
  (5 curves of characteristics can be drawn on the same screen)

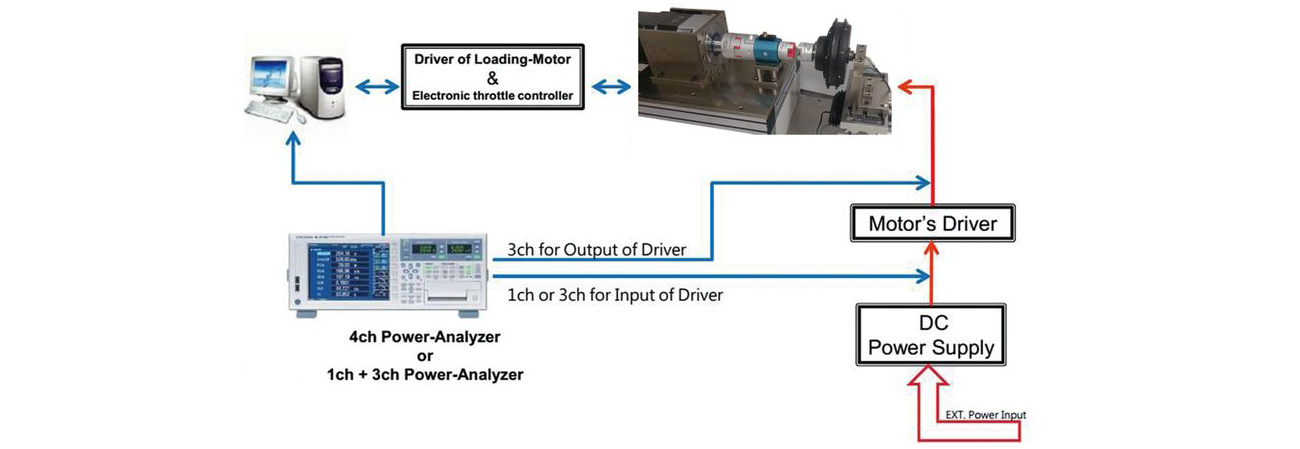

Hub Motor Test System

Hardware:

• Load Part:
  • Take a Servomotor or a Powder Brake
  • Power Feedback module (optional)
• Measurement Part:
  • Torque Meter:
    Kistler brand or Magtrol brand
  • Power Analyzer:
    Yokogawa brand WT series
    Hioki brand PW series
  • Low-Resistance meter: Hioki brand RM3544-01
  • Computer: Advantech Industrial Computer

Test items:

• Simultaneously measuring each phase V, A, and Z W of input and output of the driver.
• Torque, Speed, Motor- Efficiency, Drive-Efficiency, Total-Efficiency, Motor-housing Temperature (Optional), Motor-coil Temperature (Optional), Ld & Lq (Optional), Back EMF (Optional) ... and so on.

Software functions:

• Providing the simulated electronic throttle control voltage for the DUT
• Motor-File management: Add, Edit, Delete, Quick Search, Copy, and other functions
• Data-File management: Add, Edit, Delete, Quick Search, Copy, Print, and other functions
• T-N Characteristic-Curve test & Fixed-Point test & Manual test & Road simulation & Life test
• Data-File can be exported to Excel format
• Test data can be displayed in 6 independent curves
• Characteristic-Curve can be used for comparison
  (5 curves of characteristics can be drawn on the same screen)

Stepper Motor Test System

Load-Sensor & Pulley Specifications:

Model	Load Sensor	Pulley Radius (mm)
		Directly wound on the shaft*1	2.5mm	5mm	10mm	20mm
JP-R5N	0.5N	-	1.25mNm	2.5mNm	5mNm	10mNm
JP-1N	1N	-	2.5mNm	5mNm	10mNm	20mNm
JP-2N	2N	-	5mNm	10mNm	20mNm	40mNm
JP-5N	5N	-	12.5mNm	25mNm	50mNm	100mNm
JP-10N	10N	-	25mNm	50mNm	100mNm	200mNm
JP-20N	20N	-	50mNm	100mNm	200mNm	400mNm

Torque = Load-Sensor Rating(N) × Pulley Radius(mm)
*1: Torque will be related to motor shaft Radius.

Profile:

With the unique application of Prony (winding) braking.
It automatically obtains the full pull-in and pull-out torque curves with high accuracy.

• Pull-in torque:
  The maximum torque at which the motor can start from the holding state without losing steps for a given speed
• Pull-out torque:
  The maximum torque at which the motor can operate without losing steps for a given loading

Advantages:

• Minimal moment of inertia of the tester:
  By using the Prony method, the measurement is not affected by the inertia and the coupling loss of the test system. Especially in the Pull-in test, more to show this advantage.
• Wide Measuring Range:
  Six modes of sensor, to select the proper sensor and pulley,
  The measuring Range is from 0.1 to 400 mNm.
• Monitoring and analysis easier:
  Real-time display of testing results on the screen.
  Data-File can be exported to Excel format.

Measured Example:

• Pull-in & Pull-out Curve
• (X-axis: Frequency Y-axis: Torque)

Specifications:

Brake	Prony braking
Load-Sensor	Six types: 0.5N, 1N, 2N, 5N, 10N, 20N
Sensor sensitivity	DC 2 V/ rating
Torque precision	Within ± 1% of torque range
Maximum allowable load	200% of Sensor rating
Torque meas. range	T=Sensor Rating X Pulley Diameter/ 2
Drive frequency range	16-50,000 Hz
Drive signals	Square wave (duty 1:1), TTL-level voltage signal or open-collector signal
Operating System	Microsoft Windows
Power supply	Single-phase AC100-120V ± 10%,50/ 60 Hz
	Single-phase AC200-240V ± 10%,50/ 60 Hz

Tiny Motor Dynamometer Test System

Load-Sensor & Pulley Specifications：

Model	Load Sensor	Pulley Radius (mm)
		Directly wound on the shaft *1	2.5mm	5mm	10mm	20mm
JP-R5N	0.5N	-	1.25mNm	2.5mNm	5mNm	10mNm
JP-1N	1N	-	2.5mNm	5mNm	10mNm	20mNm
JP-2N	2N	-	5mNm	10mNm	20mNm	40mNm
JP-5N	5N	-	12.5mNm	25mNm	50mNm	100mNm
JP-10N	10N	-	25mNm	50mNm	100mNm	200mNm
JP-20N	20N	-	50mNm	100mNm	200mNm	400mNm

Torque = Load-Sensor Rating(N) × Pulley Radius(mm)
*1: Torque will be related to motor shaft Radius.

Profile：

Adopting the unique Prony (winding) braking technology,
It is available to measure high-precision T-N curve

Advantages：

• No inertia & No coupling loss：
  Due to using the Prony method, there are no inertial forces and coupling losses during the test. They are crucial that affecting the accuracy of the testing of micro motors.
• Wide Measuring Range：
  Six modes of the sensor, to select the proper sensor and pulley
  The measuring Range is from 0.1 to 400 mNm.
• Monitoring and analysis easier：
  Real-time display of the testing results on the screen.
  Data-File can be exported to Excel format.
• High Speed：
  The Max. Speed up to 60,000rpm
• Add a power analyzer and you can measure V/A/W and the efficiency of the motor.

Measured Example：

(X-axis：Speed /  Y-axis：Torque)

Specifications：

Brake	Prony braking
Load-Sensor	Six types：0.5N, 1N, 2N, 5N, 10N, 20N
Sensor sensitivity	DC 2 V/ rating
Torque precision	Within ± 1% of torque range
Maximum allowable load	200% of Sensor rating
Torque meas. range	T=Sensor Rating X Pulley Diameter/ 2
Operating System	Microsoft Windows
Power supply	Single-phase AC100-120V ± 10%,50/ 60 Hz
	Single-phase AC200-240V ± 10%,50/ 60 Hz

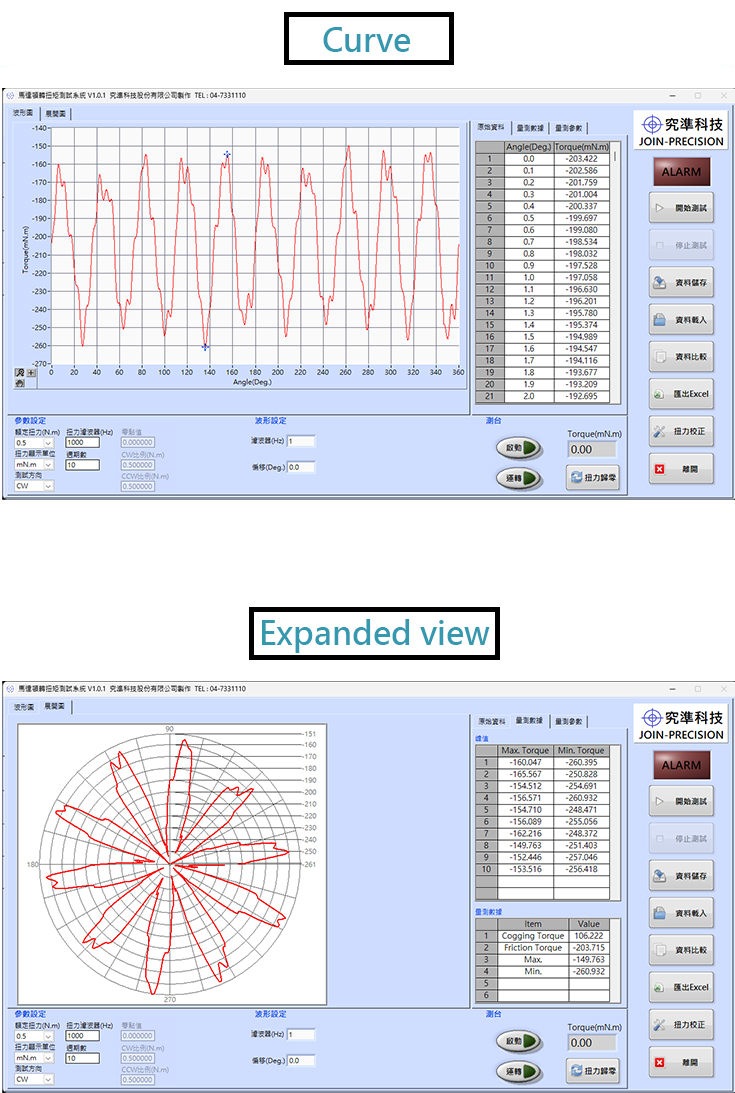

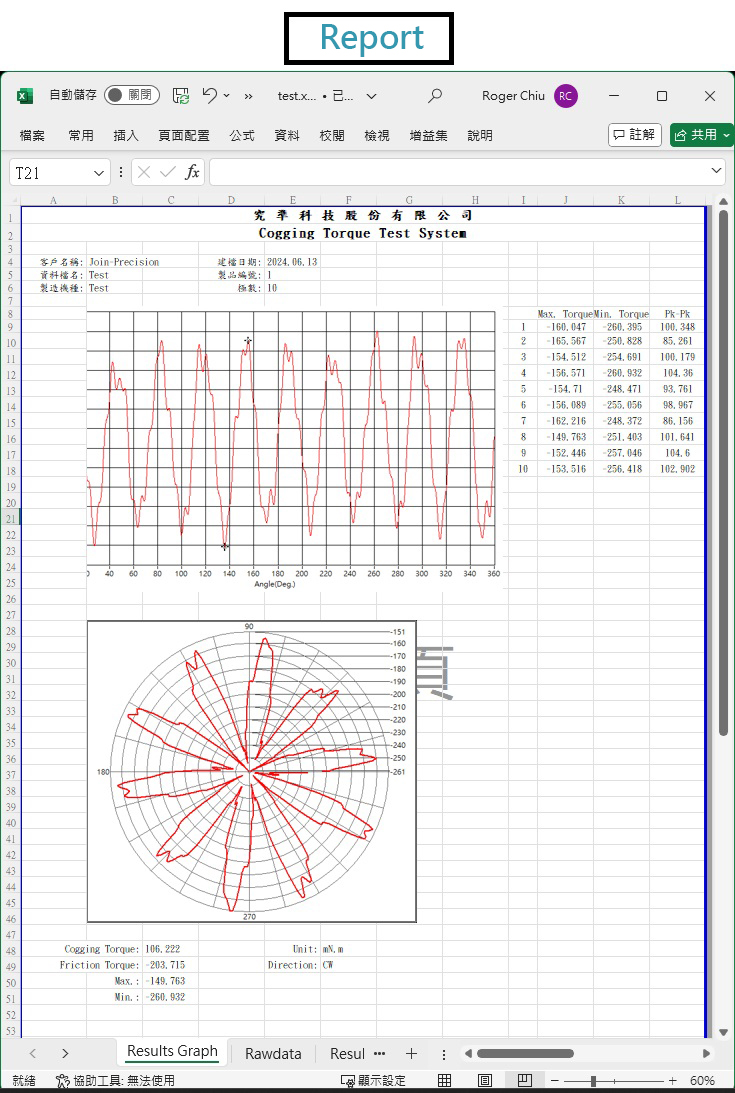

Cogging Torque Test System

The pictures are for reference only


• The torque value is measured by a well-known European brand, and the Japanese high-precision "stepper motor" is used for the drive part
• Measurement range: 20mNm~2Nm (according to the specifications of the torque meter).
• Precision test bench: customized according to motor specifications
• Data capture: 3,600 per lap
• Test items: Cogging Torque, Friction Torque, Torque (Max.), Torque (Min.).
• Others: Curve comparison function
